2WD Multifunctional Smart Robot Car Kit (L298N)
රු8,950.00
This comprehensive kit is packed with high-quality, essential robotics components:
- Sensor Shield V5.0: Perfectly designed to expand the capabilities of your Arduino UNO.
- L298N Motor Driver Module: The industry standard for controlling the speed and direction of your robot’s DC motors.
- Ultrasonic Sensor Module: Acts as the “eyes” of your robot, allowing it to detect and avoid obstacles in its path automatically.
- Infrared (IR) Remote Control & Receiver: Take manual command of your robot from a distance.
- Line Tracking Modules: Enable your car to follow a customized physical path on the ground.
10 in stock
Thingerbits 2WD Robot Car Starter Kit – Best Arduino Robotics Kit for Beginners in Sri Lanka
Design, Assemble, and Program Your Very First Robot!
The Thingerbits 2WD Robot Car Starter Kit is the ultimate hands-on learning experience designed specifically for beginners and students. Whether you are taking your first steps into Arduino programming or looking to gain practical experience in mechanical assembly and robotics, this kit provides everything you need to bring your robot to life.
From Beginner to Master
No programming experience? No problem! We have developed a comprehensive, step-by-step tutorial that guides you through the entire process. You will start by building a simple, manual car and gradually evolve it into a multi-functional, smart robotic vehicle controlled by an IR Remote.
-
Detailed Guidance: Every single lesson includes fully commented sample code, clear circuit graphs, step-by-step assembly instructions, and helpful video guides.
Key Product Features
| Feature | Description |
| 100% Open Source | Fully customizable code and hardware. Perfect for science fairs, college projects, or even developing commercial applications. |
| Beginner-Friendly | Designed for absolute novices to easily follow along and learn the fundamentals of coding and robotics. |
| Intermediate Ready | Advanced users can dive into our detailed code comments to modify, upgrade, and completely customize the robot’s behavior. |

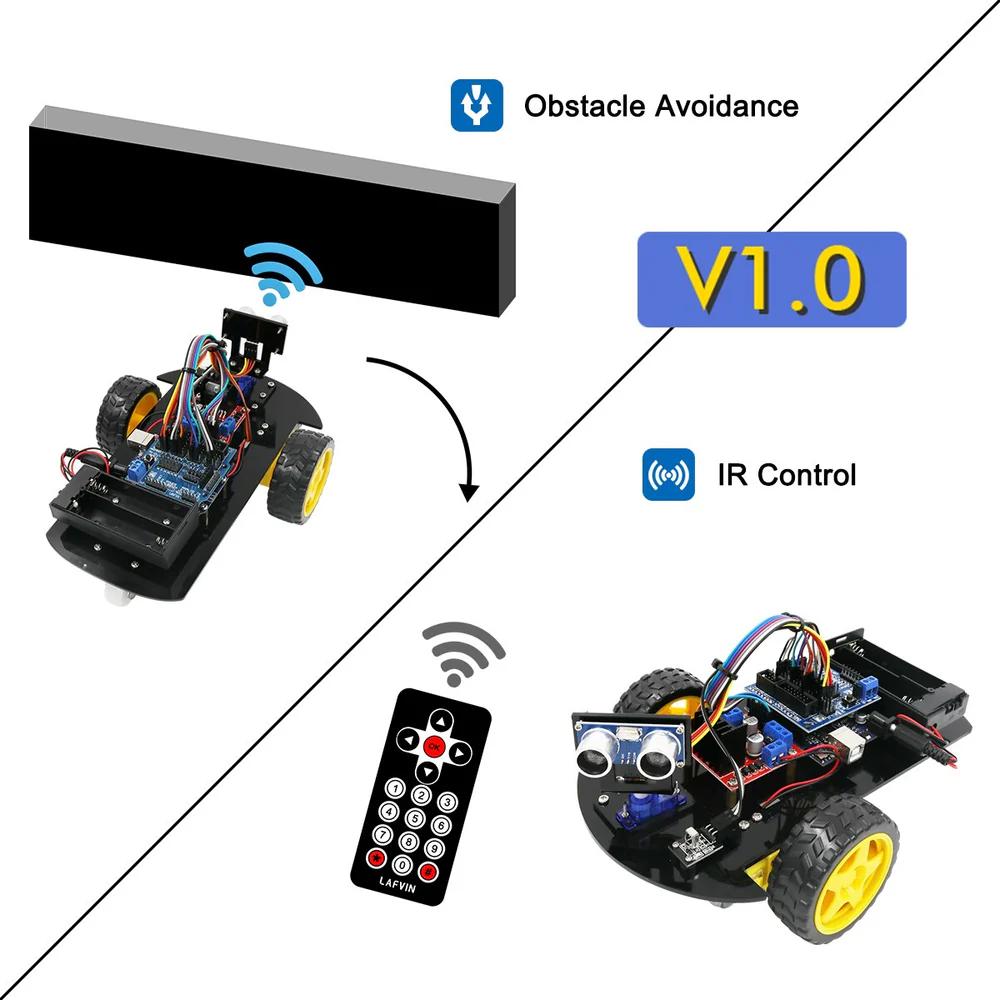

| Multi-Mode Operation | Program your car to operate in several exciting modes, including auto-go (obstacle avoidance), infrared remote control, and line tracking. |
| All-in-One Package | Contains all the necessary mechanical parts, sensors, and electronic modules required for a complete build. |
Complete Item List & Specifications

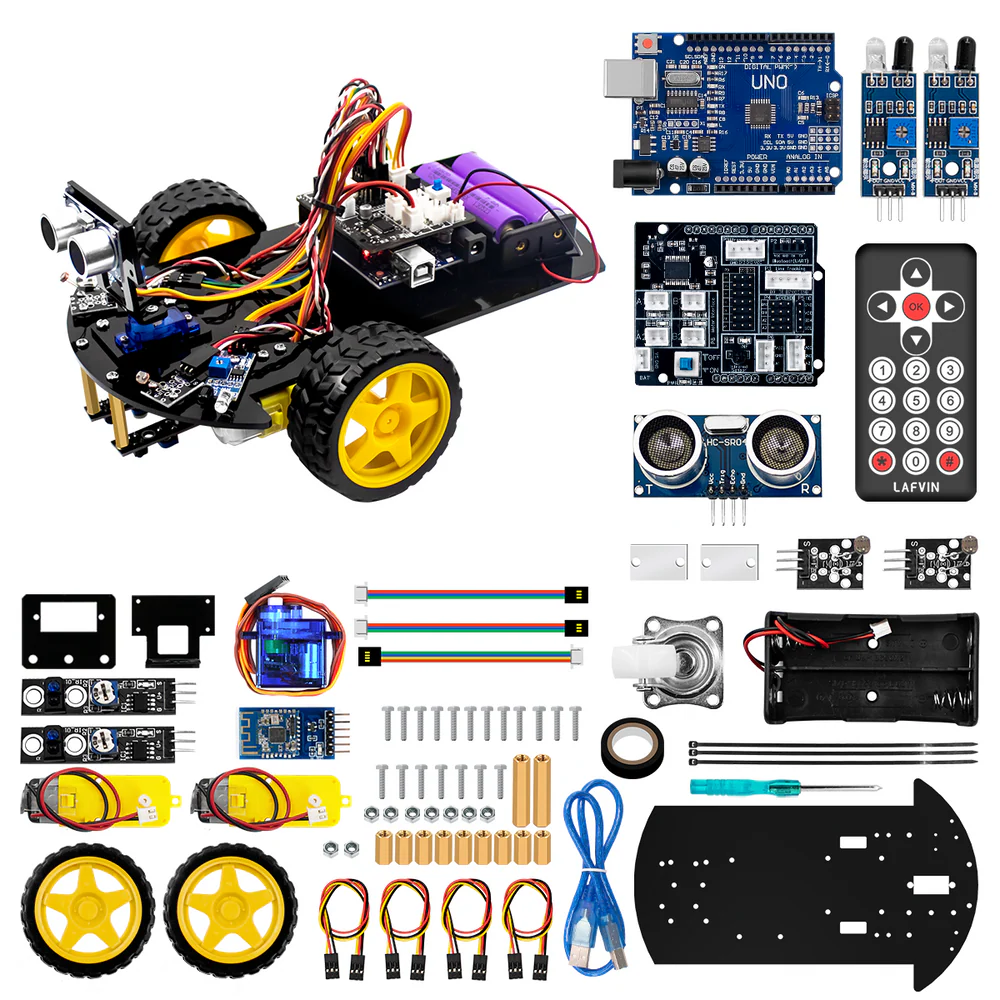

Below is the exact breakdown of the premium modules and hardware included in your 2WD Robot Car Kit:
Main Electronic Modules
| Qty | Component | Key Specifications |
| 1 | Arduino UNO R3 + USB Cable | Atmega328P (16MHz), 32KB Flash, 2KB SRAM, 5V Operating Voltage, 14 Digital I/O, 6 Analog Pins. |
| 1 | Sensor Shield V5.0 | 5V Supply, UART/APC220/LCD Interfaces, 14 Digital IO, 6 Analog Inputs, Reset Button (57x56mm). |
| 1 | L298N Motor Driver Board | H-bridge drive, 5V-35V Drive Voltage, 2A Max Single Bridge Current, 25W Max Power. |
| 1 | HC-04 Ultrasonic Sensor | 2cm–450cm Theoretical Distance (2cm–80cm Practical), 3mm Accuracy, <15° Angle, 40Hz. |
| 1 | Infrared Wireless Receiver | Up to 5m Transmission Distance, 60° Effective Angle, CR2025 Battery (160mAh). |
| 1 | SG90 Servo Motor | Plastics gears, 4.8-5VDC, 180° Rotation, 1.8 kg.cm Torque, 9.0g Weight. |
Motors, Wheels & Chassis
Follow our structured, step-by-step curriculum to build and code your robot from scratch:
- Lesson 1: Installing the Arduino IDE
- Lesson 2: Adding Libraries and Opening the Serial Monitor
- Lesson 3: LED Blink Basics
- Lesson 4: Robot Hardware Installation Method
- Lesson 5: Programming the Servo Motor
- Lesson 6: Interfacing the Ultrasonic Sensor Module
- Lesson 7: Reading the IR Receiver Module
- Lesson 8: Controlling Motors with the L298N Driver
- Lesson 9: Building the IR Remote Control Car
- Lesson 10: Programming Obstacle Avoidance
