Arduino Mega 2560 Compatible 16U2 ATmega2560 Development Board
- ATmega 2560 Chip: MEGA R3 Breadboard is equipped with an ATmega 2560 Chip microcontroller with 54 digital I/O pins and 16 analog input pins, allowing users to connect a variety of sensors, displays, and other peripherals
- Mega 2560 R3 Board: ATmega 2560 With 256KB of flash memory space, it provides powerful performance and diverse I/O options, can handle large-scale programs, and is an ideal choice for projects that require a lot of computing resources.
- Arduino Kit: MEGA R3 comes with a powerful RESET circuit, compatible with Arduino MEGA, while using a 5.5 * 2.1mm DC barrel jack, it is also compatible with a 5.5 * 2.5mm DC barrel jack
- Safety Guarantee: Mega R3 has a resettable fuse that protects your computer’s USB port from short circuits and overcurrent. If more than 500 MA of current is applied to the USB port, the fuse will automatically disconnect
රු5,490.00
5 in stock
Need Help? Contact Us via WhatsApp

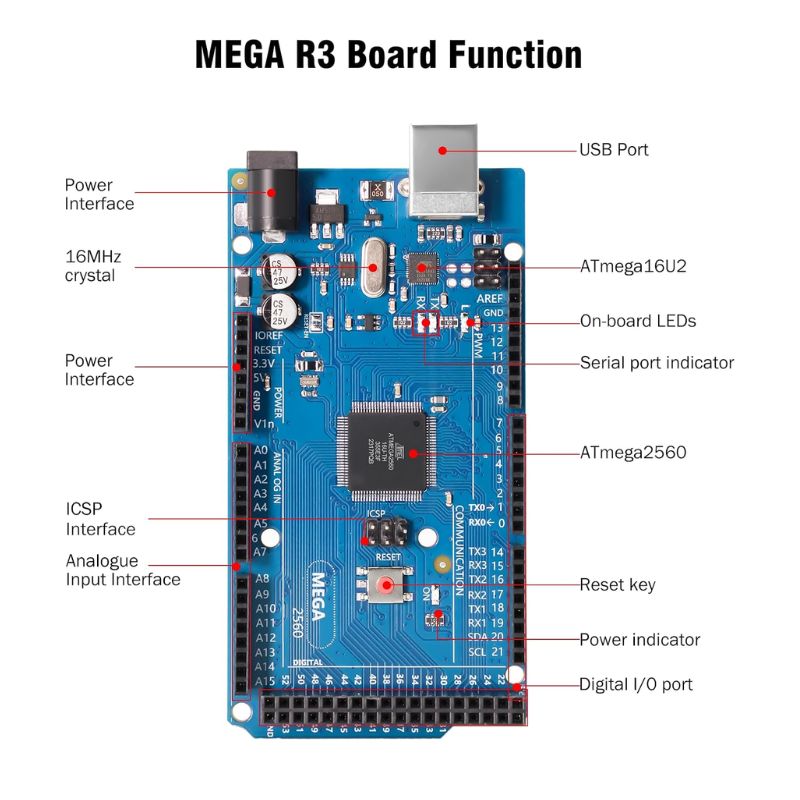

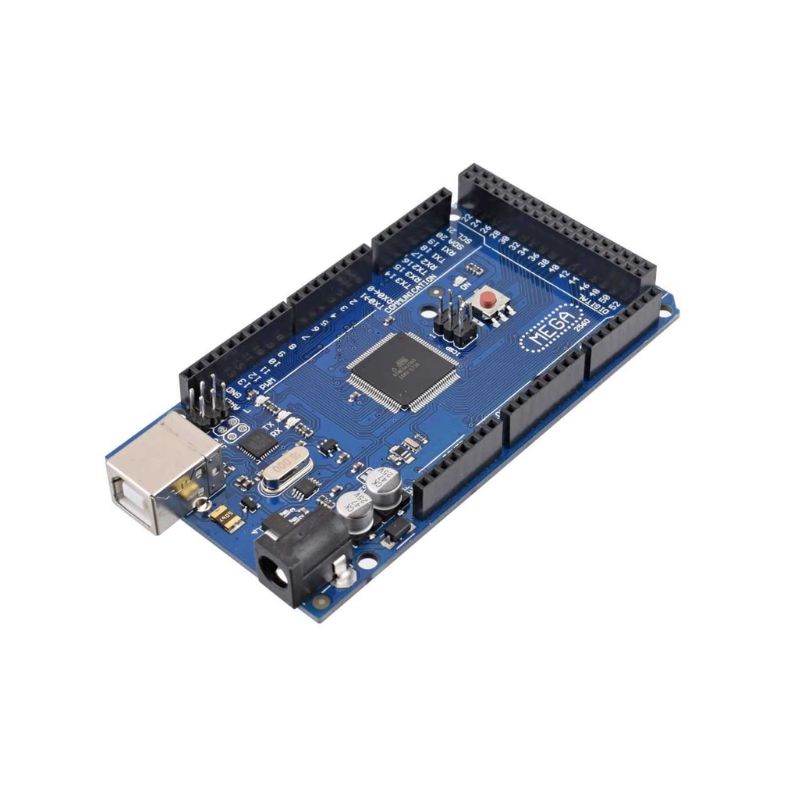

The Arduino Mega 2560 is an open-source microcontroller board based on ATmega2560. Along with this, it also has 54 digital I/O pins, 16 Analog Inputs, 4 UARTs, an ICSP Header, a 16 MHz Crystal Oscillator, a reset button, a USB port, and a DC Power Jack.
It is designed for projects that require more I/O lines, more sketch memory, and more RAM. It is best suited for Robotics, 3D printers, RC planes, etc. projects that require many sensors with different communication protocols and actuators to work in tandem. It gets programmed with the help of Arduino IDE and you do not need to attach any other components to program them. Its uses include DIY projects, IoT-based projects, Robotics, and Prototyping for Electronic components and systems.
The Arduino Mega Microcontroller boards such as Arduino UNO, Arduino Nano, Arduino Leonardo, and Arduino Pro Mini have revitalized the Automation Industry with their sheer simplicity and easy-to-use interface.
PRODUCT DESCRIPTION
It hardly takes 5-10 minutes to upload your first program on Arduino Mega Board. You just need a USB A to B cable and Arduino IDE installed on your computer. After installing Arduino IDE, go to Files>Examples>Basics>Blink and compile and upload this on your Board.
The Arduino Mega is a flagship microcontroller board in the Arduino lineup, renowned for its extensive capabilities and versatility. Powered by the ATmega2560 microcontroller, it boasts an impressive array of features tailored for advanced projects. With a total of 54 digital I/O pins, 16 analog inputs, and a whopping 256 KB of flash memory, the Mega offers abundant resources for handling complex tasks with ease.
One of the standout features of the Arduino Mega is its compatibility with a wide range of shields and expansion modules, allowing users to augment its functionality according to their specific project requirements. Additionally, the Mega supports various communication protocols, including UART, SPI, and I2C, enabling seamless interaction with peripherals such as sensors, displays, and wireless modules.
SPECIFICATION
| Microcontroller | ATmega2560 |
| Operating Voltage | 5V |
| Input Voltage (recommended) | 7-12V |
| Input Voltage (limits) | 6-20V |
| Digital I/O Pins | 54 (of which 14 provide PWM output) |
| Analog Input Pins | 16 |
| DC Current per I/O Pin | 40 mA |
| DC Current for 3.3V Pin | 50 mA |
| Flash Memory | 256 KB of which 8 KB used by bootloader |
| SRAM | 8 KB |
| EEPROM | 4 KB |
| Clock Speed | 16MHz |

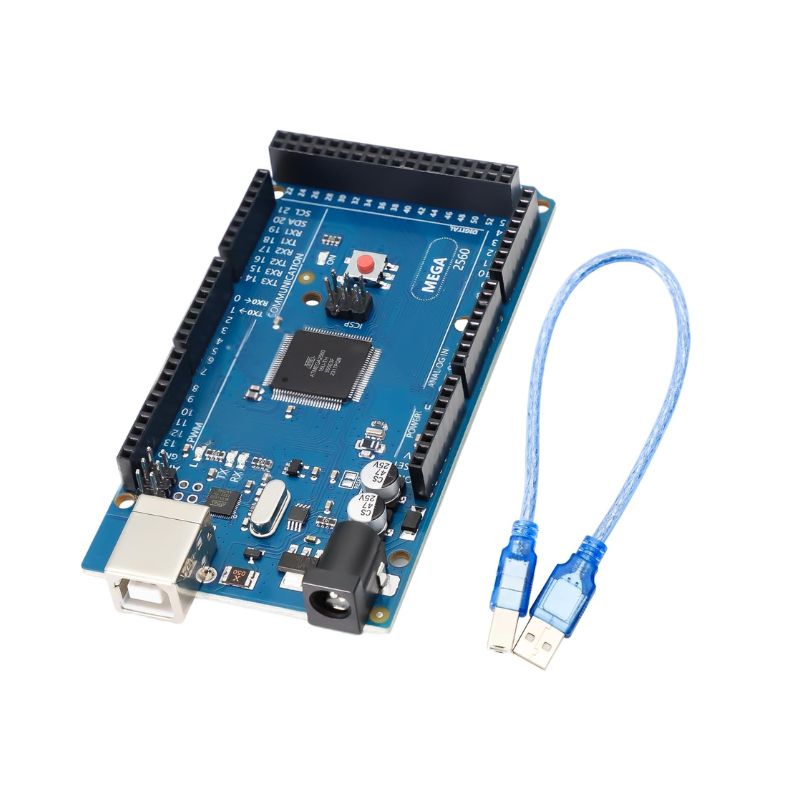

WHAT’S IN THE PACKAGE
- 1x SainSmart Mega 2560 for Arduino
- 1x Free USB Cable
