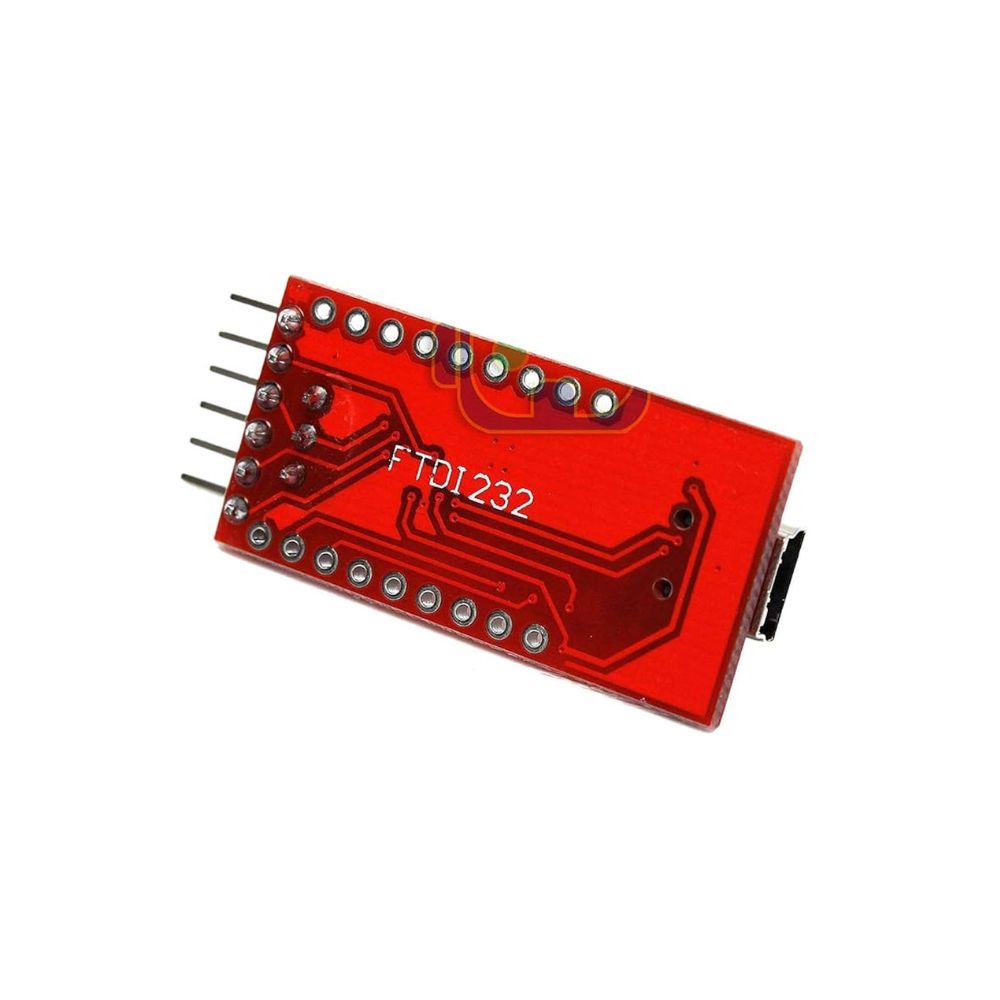

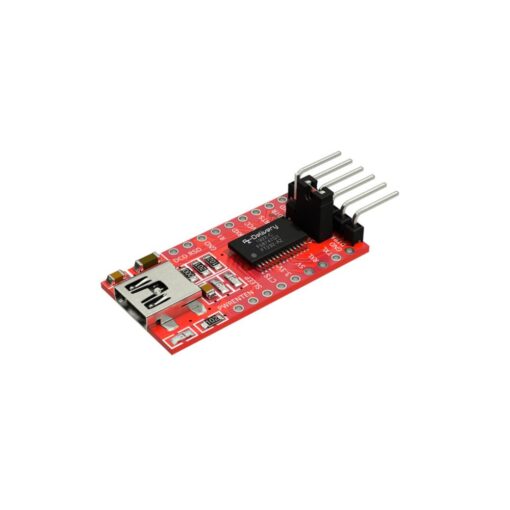

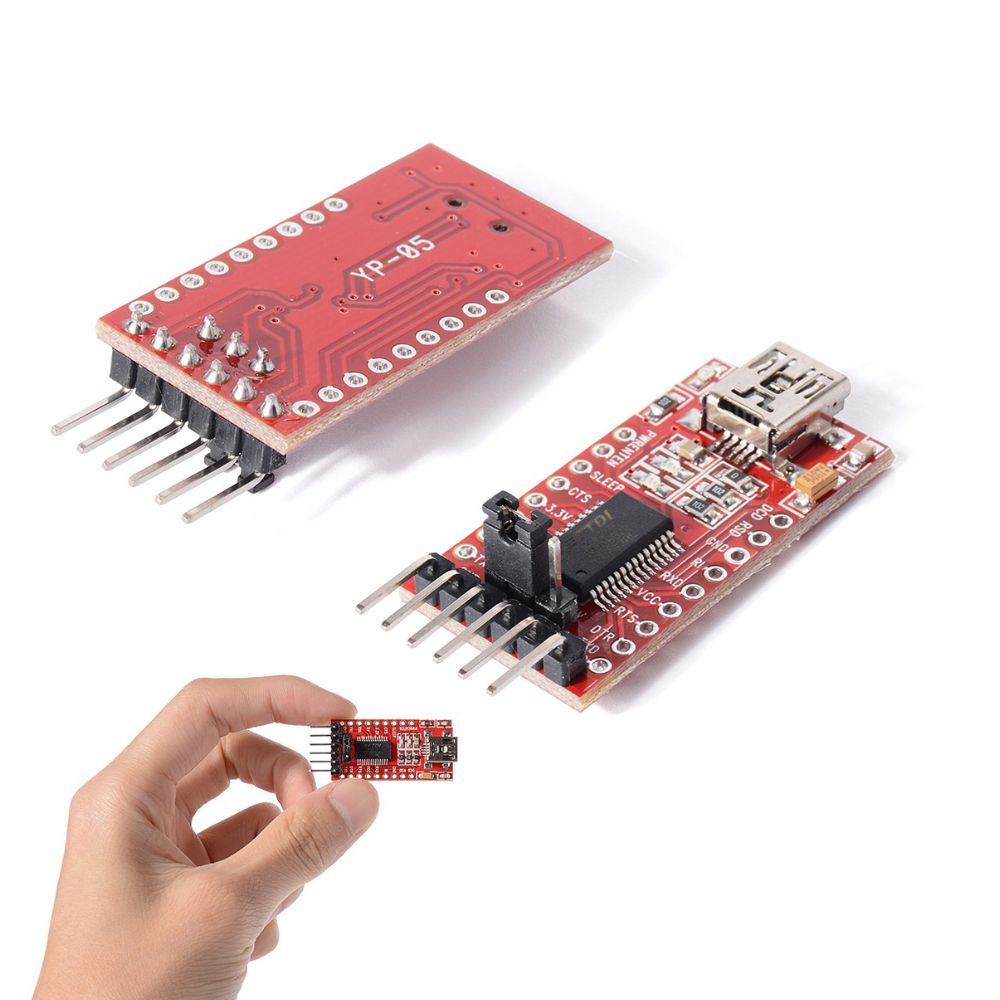

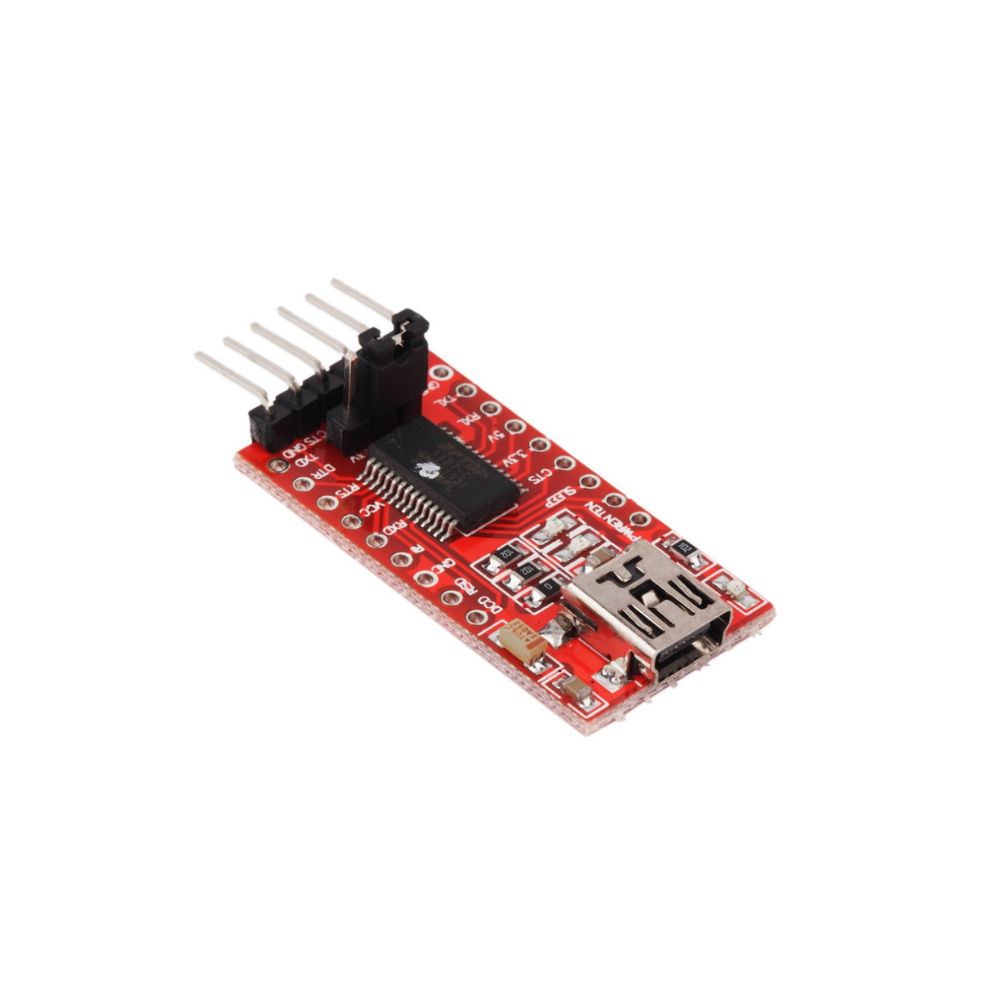

YP-05 FTDI FT232L USB to TTL Converter Module
- Chip: FT232RL
- Draw out all signal port of FT232RL chip
- RXD / TXD transceiver communication indicator
- USB power supply, can choose 5V or 3.3V, set by jumper
- With over current protection, using 500mA self-restore fuse
- Pin definition: DTR, RXD, TX, VCC, CTS, GND
- Pitch: 2.54mm
- Size: 36 x 18mm (L x W)
- Interface: Mini USB
රු420.00
4 in stock
Need Help? Contact Us via WhatsApp
0
People watching this product now!
Our FT232 USB to TTL serial adapter is one of the most widely used adapters on the market. The practical USB-TTL serial adapter is used to connect a device with a serial interface (UART) to a USB interface, for example to your PC.
Special features
- The AZ-Delivery adapter enables a UART data connection between a PC and other hardware that does not have its own USB converter.
- Depending on requirements, the adapter can be set to a 3.3V or 5V logic level.
- The logic level can be set using the jumper on the board.
Technical data
| Interface | UART |
| chip | FT232-AZ |
| Connection | Mini-USB connection |
| Data connection | Mini-USB-B cable |
| Pins connections | DTR,RXD,TX,VCC,CTS,GND |
| Dimensions | 47 x 19mm |
