Arduino-compatible

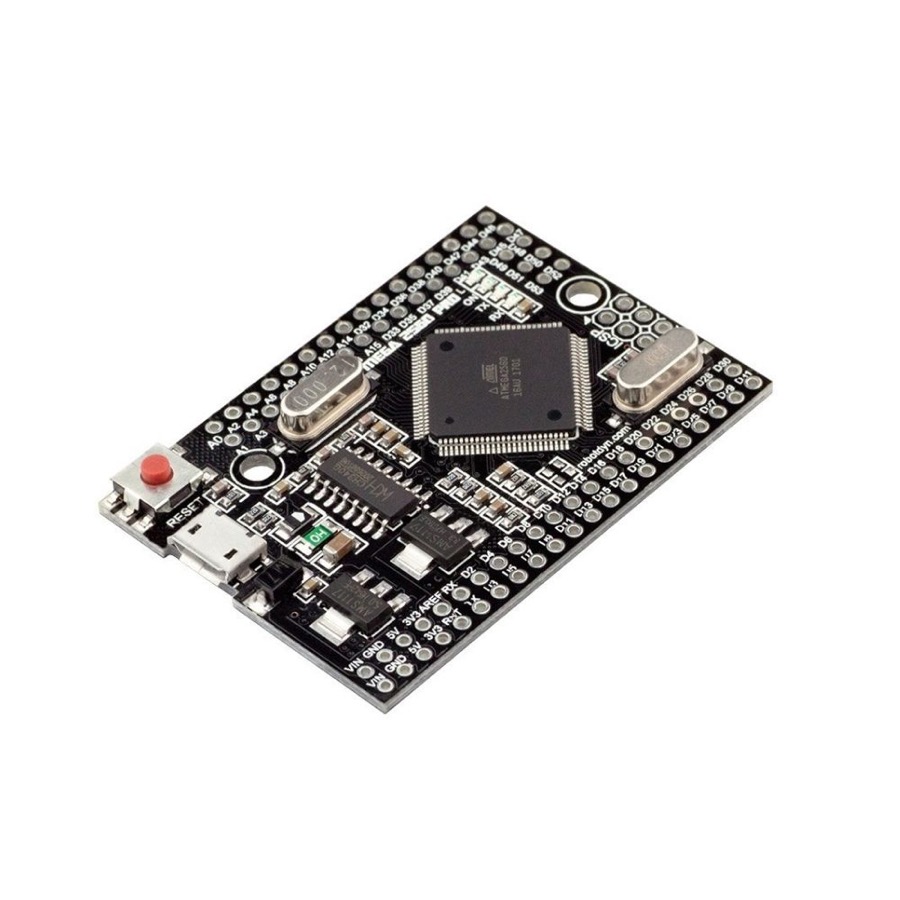

Mega 2560 PRO MINI 5V (CH340G, ATmega2560-16AU)
A compact Mega 2560 Pro Mini — full ATmega2560 power and pin count in an embeddable footprint.
LKR 4,250
In stock
Key features
- Genuine ATmega2560-16AU MCU
- CH340G USB-UART
- Fully Mega 2560 compatible
- Compact 38 × 54mm board
- Micro-USB, plug-and-play
- 5V @ 800mA + 3.3V @ 800mA regulators
Island-wide delivery
Genuine parts
Easy returns

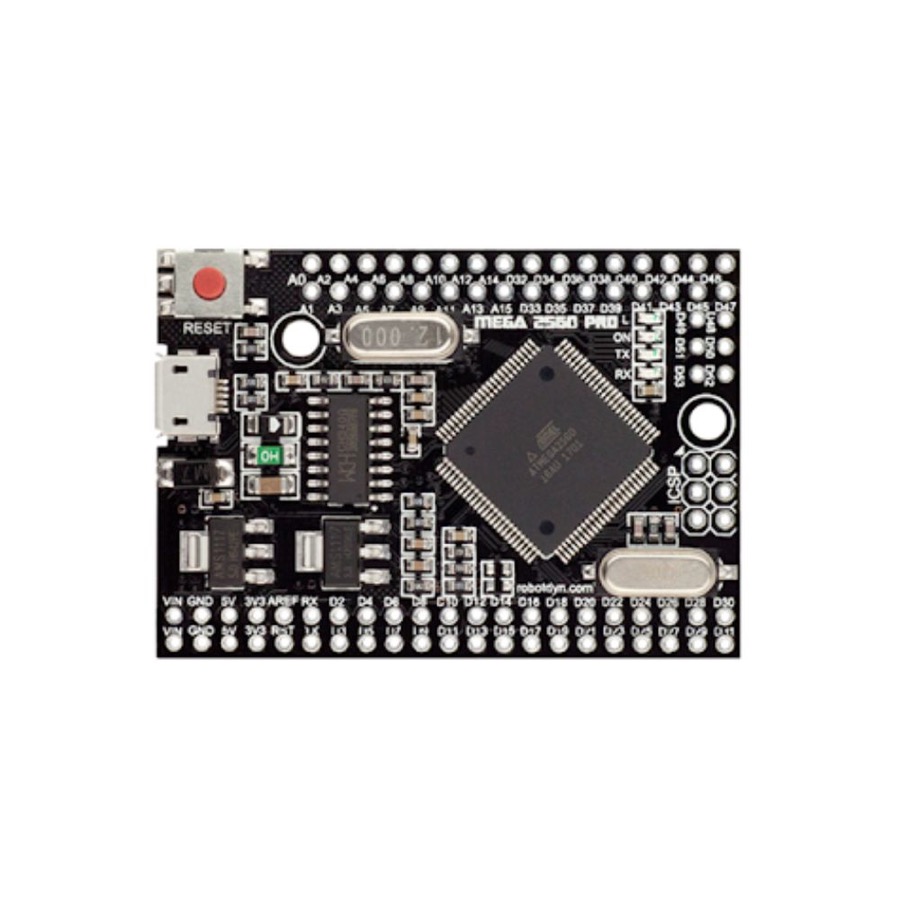

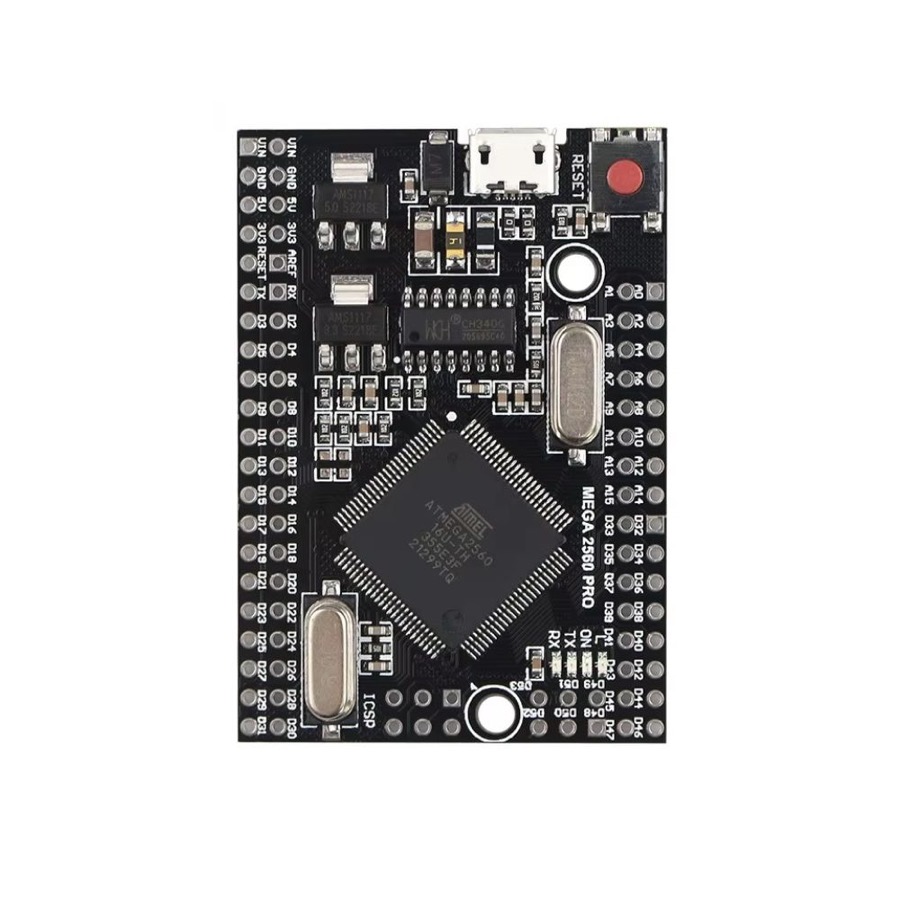

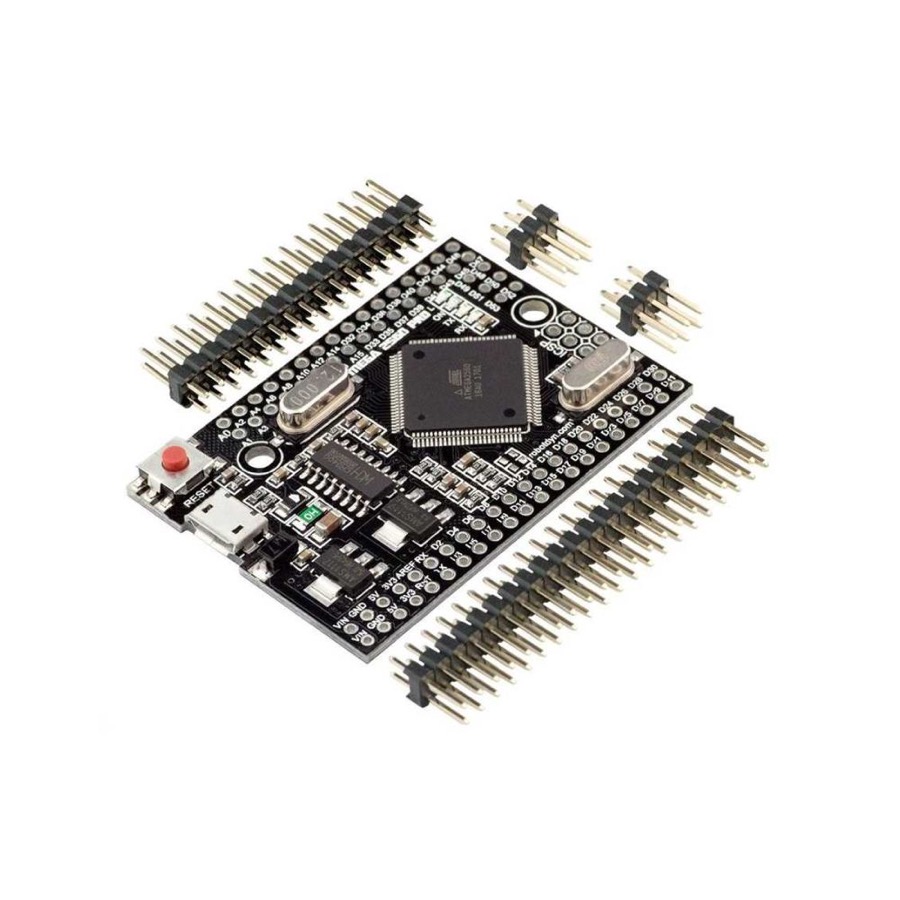

The Mega 2560 Pro Mini packs the full power and pin count of an Arduino Mega 2560 into a tiny 38 × 54mm board built for embedding. It runs a genuine ATmega2560-16AU with a low-cost CH340G USB interface and micro-USB connectivity, and is fully compatible with the Mega 2560 — ideal for advanced projects that have outgrown an Uno but need to stay small.
Specifications
- Microcontroller: ATmega2560-16AU
- USB interface: CH340G
- Clock: 16 MHz quartz resonator
- Fully compatible with Arduino Mega 2560
- Board size: 38 × 54mm
- Input voltage: 6–18V DC (or micro-USB)
- Regulators: 5V @ 800mA, 3.3V @ 800mA
- Micro-USB connector
