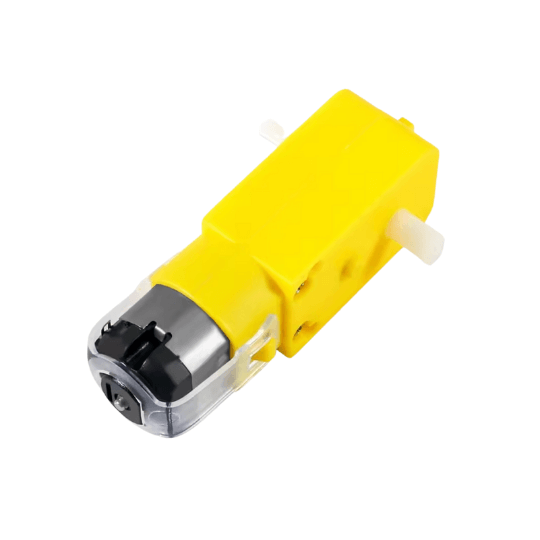

TT Gear Motor (Dual-Shaft, Plastic Gear)
A TT gear motor with dual output shaft and 1:48 gearing — the standard drive motor for robot cars.
LKR 170
In stock
Key features
- 3–6V DC operation
- 1:48 gear ratio
- ~300 RPM at 6V
- ~1.5kg·cm torque
- Dual output shaft
- Works with L298N / L293D drivers
Island-wide delivery
Genuine parts
Easy returns
The TT gear motor is the classic yellow drive motor behind countless robot cars and learning kits. Its 1:48 plastic gearbox delivers useful torque at a manageable ~300 RPM on 3–6V, and the dual-sided shaft lets you add wheels or encoders on either end. Pairs directly with L298N and L293D driver boards.
Specifications
- Operating voltage: 3–6V DC
- Gear ratio: 1:48
- Speed: ~300 RPM at 6V
- Torque: ~1.5kg·cm at 6V
- Current: ~150mA no-load, ~1.5A stall
- Shaft: dual output, 5mm flat-sided
- Dimensions: 70 × 22 × 18mm
- Works with L298N and L293D drivers
