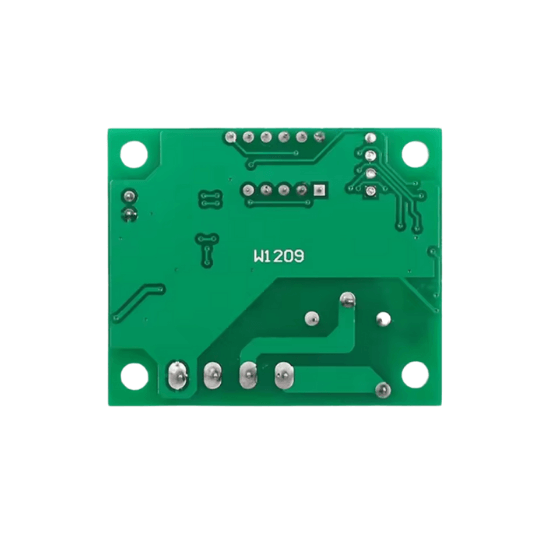

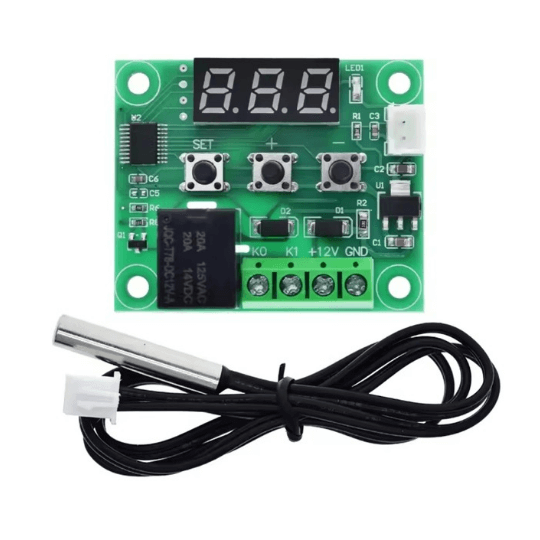

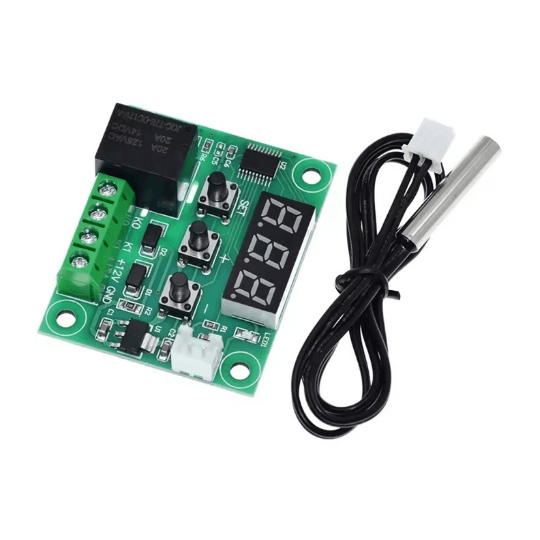

W1209 12V Digital Temperature Controller
A W1209 12V thermostat module with a waterproof NTC probe, 20A relay and digital display.
LKR 350
In stock
Key features
- 12V DC operation
- Range −50°C to +110°C
- ±0.1°C accuracy
- 20A relay output
- Waterproof NTC 10k probe
- Heating or cooling mode
- 3-digit LED display
Island-wide delivery
Genuine parts
Easy returns

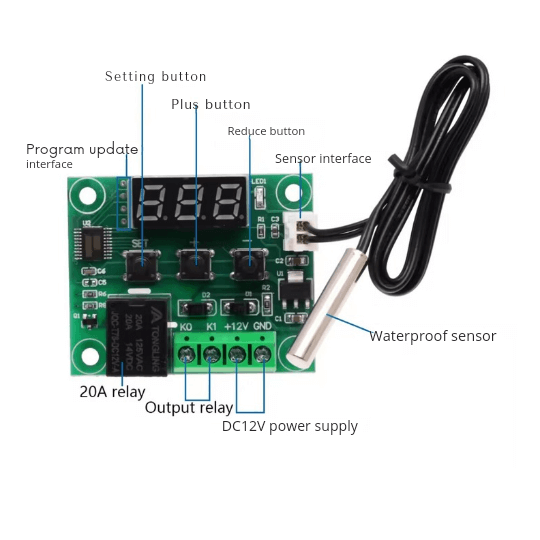

The W1209 is a compact, programmable temperature controller for incubators, fridges, fans and heaters. A waterproof NTC probe reads temperature from −50°C to +110°C, and the onboard 20A relay switches your load automatically in either heating or cooling mode — all set from three buttons and shown on a clear LED display.
Specifications
- Input voltage: DC 12V
- Measurement / control range: −50°C to +110°C
- Accuracy: ±0.1°C
- Output: 20A relay (max 240V AC / 20A at 14V DC)
- Sensor: NTC 10k waterproof probe
- Mode: heating or cooling (configurable)
- Display: 3-digit 7-segment LED

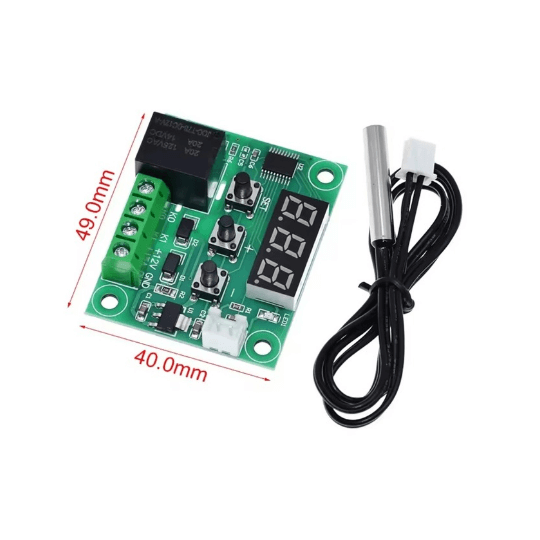

- Dimensions: ~48 × 40 × 15mm
