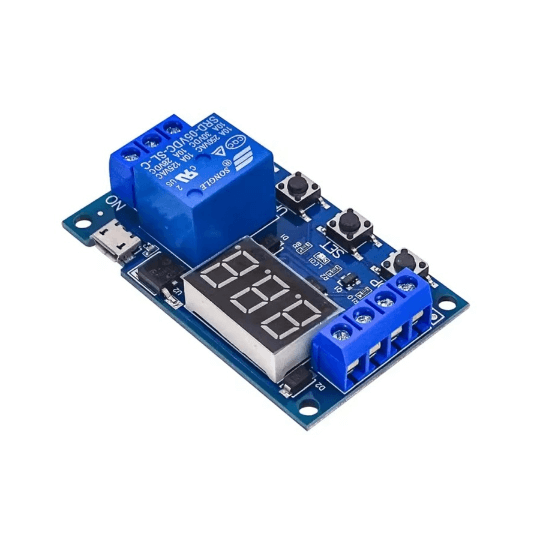

XY-J02 Digital Timer Relay Module with LED Display
A programmable timer-relay module with LED display, wide 5–30V input and delay/cycling modes.
LKR 390
In stock
Key features
- DC 5–30V input
- Relay output 250V AC / 10A
- Timing 0.01s to 999 min
- Delay on/off and cycling modes
- LED digital display
- USB or screw-terminal power
Island-wide delivery
Genuine parts
Easy returns
The XY-J02 is a versatile programmable timer relay for automation and robotics. It supports delay-on, delay-off and cycling modes across a wide 0.01-second to 999-minute range, with a clear LED display and a 250V/10A relay output. Power it from micro-USB or screw terminals and run it anywhere from 5 to 30V.
Specifications
- Input voltage: DC 5–30V
- Relay output: AC 250V / 10A or DC 30V / 10A
- Timing range: 0.01s to 999 min
- Modes: delay on/off, cycling timers
- Display: LED digital screen
- Power: micro-USB or screw terminal

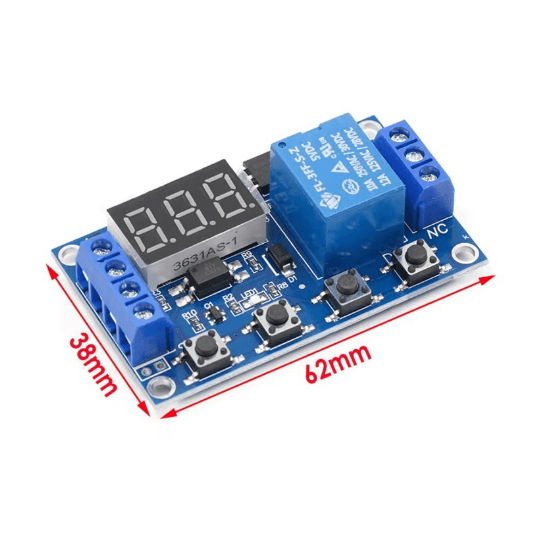

- Dimensions: 62 × 38 × 12mm
