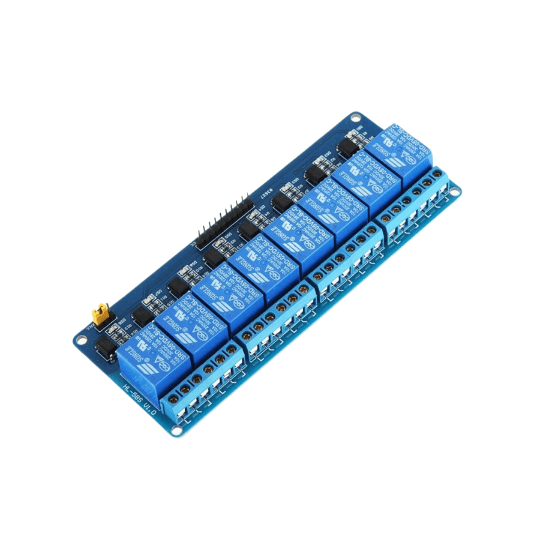

5V 8-Channel Relay Module
An 8-channel 5V relay module for controlling multiple high-power devices from one microcontroller.
LKR 1,150
In stock
Key features
- 8 relay channels
- 250V AC / 30V DC, 10A relays
- Low-level trigger
- 15–20mA per channel
- LED status indicators
Island-wide delivery
Genuine parts
Easy returns
The 8-channel relay board gives you eight isolated switches for lights, motors and appliances, all driven from a single microcontroller. Low-level triggering and a modest 15–20mA per channel make it easy to run from Arduino, Raspberry Pi and similar boards.
Specifications
- Channels: 8
- Operating voltage: 5V
- Contact rating: 250V AC / 30V DC, 10A
- Trigger: low-level
- Drive current: 15–20mA per channel
- LED status indicators
